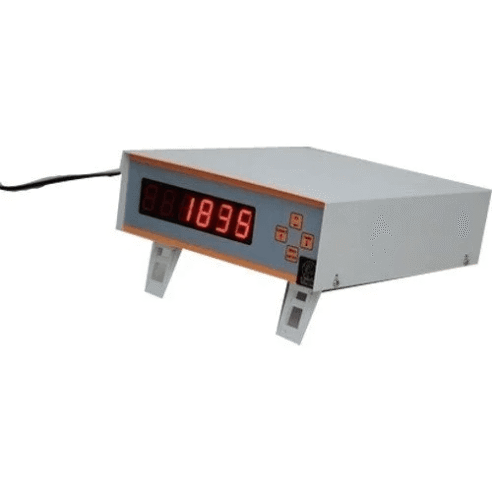

WEIGHBRIDGE INDICATOR WITH RS232 CONNECTION

Benefits of RS232-Enabled Indicators

1. Reliable Data Exchange:
   • Ensures accurate and consistent weight data transfer between devices.
2. Ease of Integration:
   • Simplifies connectivity with legacy systems or industrial networks.
3. Remote Monitoring:
   • Enables data retrieval and monitoring from remote systems via serial communication.

Applications

• Truck and vehicle weighbridges.
• Warehouse and logistics operations.
• Industrial processing plants.
• Agriculture and mining sectors.

Setup and Configuration

1. RS232 Cable Connection:
   • Connect the RS232 port on the indicator to the external device using a standard serial cable.
   • Ensure the pin configuration matches the target device (e.g., DB9 or DB25 connectors).
2. Baud Rate and Protocol Configuration:
   • Set matching baud rates and communication protocols on the indicator and the receiving device.
3. Data Format:
   • Configure the format of transmitted data (e.g., ASCII, start/stop bits, parity).
4. Testing:
   • Use terminal software (e.g., PuTTY, HyperTerminal) to verify data transmission.

Key Features of Weighbridge Indicators with RS232 Connection

1. Weight Display:
   • Displays the weight measured by the weighbridge in a clear, user-friendly format.
   • Typically features an LED or LCD screen.
2. RS232 Interface:
   • A standard communication protocol for serial data exchange.
   • Allows the indicator to send weight data to peripheral devices like:
     • Printers (for generating weight tickets).
     • Computers (for integration with ERP or management systems).
     • Data Loggers (for historical recordkeeping).
   • Compatible with software applications for data management and analysis.
3. Data Transmission:
   • Supports real-time or periodic weight data transmission.
   • Configurable baud rates for communication speed (e.g., 9600, 19200 bps).
4. Additional Interfaces (Optional):
   • May include Ethernet, USB, or wireless communication options for enhanced connectivity.
5. Calibration and Configuration:
   • Provides easy access to calibration settings to ensure accuracy.
   • May include tare, zero, and accumulation functions.
6. Durability:
   • Housed in rugged enclosures to withstand harsh industrial environments.
   • Dust and water-resistant designs (often with IP65 or IP67 ratings).
7. Integration with Automation Systems:
   • Can be connected to PLCs or SCADA systems for automation and control.
