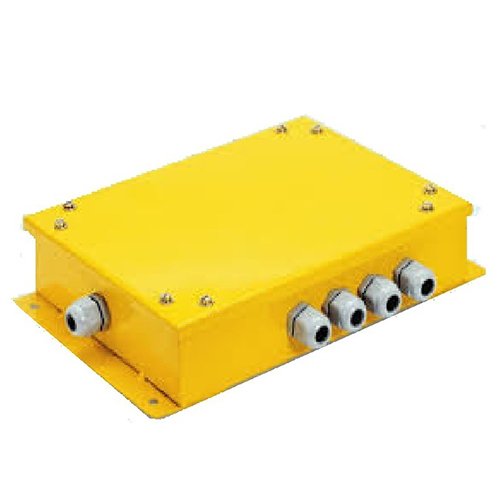

WEIGHBRIDGE LOADCELL JUNCTION BOX

Functioning

1. Signal Collection: Each load cell generates an electrical signal proportional to the weight it supports. These signals are routed to the junction box.
2. Summation and Adjustment: Inside the box, signals are summed, and trimmer potentiometers can fine-tune the outputs for balance.
3. Transmission: The combined and balanced signal is sent to the weighbridge indicator for processing and display.

Types

1. Analog Junction Box: Used with analog load cells, requiring manual adjustment of potentiometers for calibration.
2. Digital Junction Box: Used with digital load cells, offering advanced features like automatic calibration, diagnostics, and remote monitoring.

Applications

• Truck weighbridges
• Railway weighbridges
• Industrial platform scales
• Batching and hopper scales

Purpose

1. Signal Summation: Combines electrical signals from multiple load cells installed in the weighbridge platform.
2. Load Distribution: Balances the signals from load cells to ensure accurate weight readings even when the load is unevenly distributed.
3. Diagnostics: Helps identify issues with specific load cells by providing a convenient connection point for troubleshooting.

Components

1. PCB (Printed Circuit Board): Houses the connections and summation circuitry for the load cells.
2. Trimmer Potentiometers: Adjust individual load cell outputs for calibration and balancing.
3. Terminal Blocks: Secure the connections of load cells and the output cable to the weighbridge indicator.
4. Enclosure: Protects the components from environmental factors like dust, moisture, and temperature changes. Common materials include stainless steel, aluminum, or durable plastic.
5. Seal/Ingress Protection: Ensures the box is waterproof and dustproof, adhering to IP65 or IP67 standards for harsh conditions.
