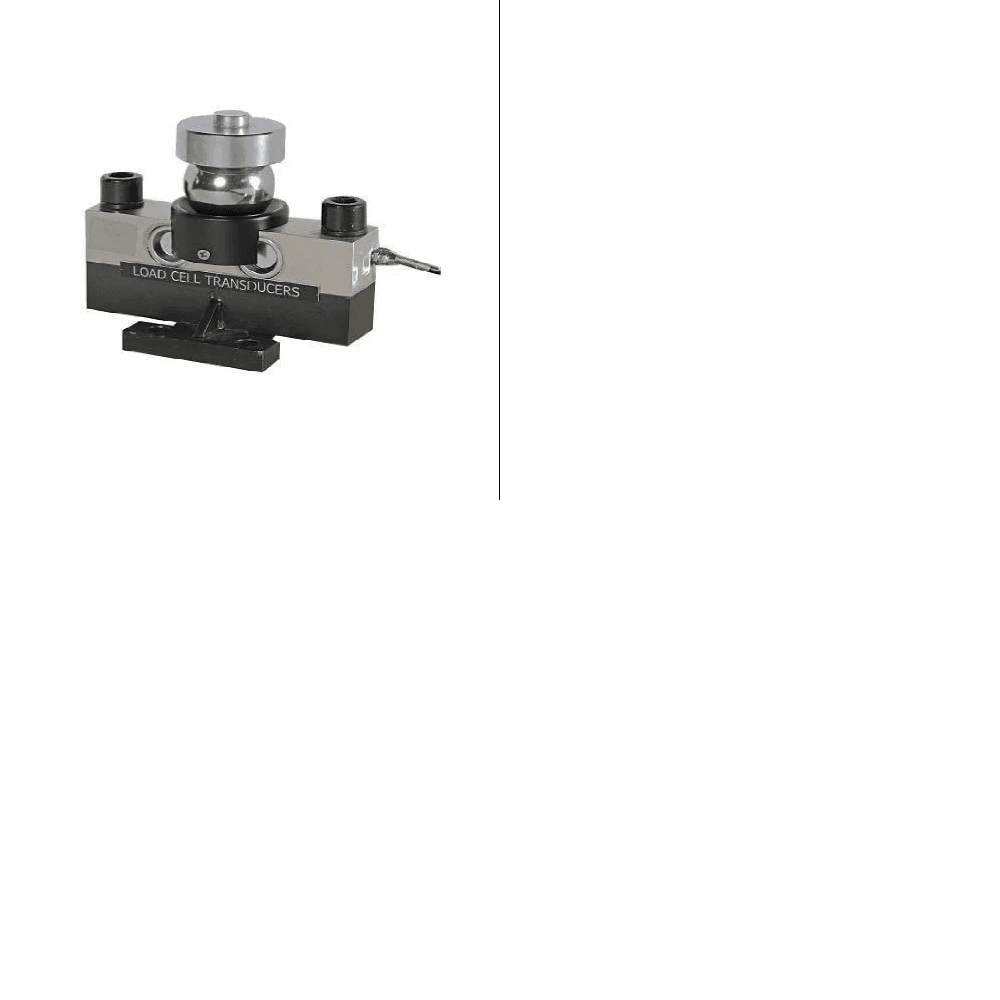

WEIGHBRIDGE LOADCELL- DIGITAL

How Digital Load Cells Work

1. Strain Gauges:
   • Similar to analog load cells, digital load cells use strain gauges to detect deformation in the load cell structure under load.
2. Analog-to-Digital Conversion:
   • The low-voltage analog signal generated by the strain gauges is digitized within the load cell itself using an integrated A/D converter.
3. Digital Signal Output:
   • The load cell transmits a high-resolution digital signal directly to the indicator or a central processing unit.

Features  No Calibration required
No signal attenuation from external environmentLong Distance signal communication between weighbridge
room and structure (Up to 200 mt)Built In Surge protectionBetter AccuracyNo chance of Signals manipulationCorner correction not requiredVery simple & easy installation procedureSuperior finish with superior Black cableEasy field replaceabilityCost EffectiveHigher precision and reliability, C3  Applications Truck scaleRailway scale Blending scale and all kinds of weighing apparatusLending scale and all kinds of weighing apparatus

Key Features of Digital Load Cells

1. Built-in Electronics:
   • Each load cell has integrated electronics for digitizing signals and possibly performing local processing (e.g., diagnostics and temperature compensation).
2. High Accuracy:
   • Less susceptible to signal degradation and noise compared to analog load cells, resulting in more precise weight measurements.
3. Simplified Calibration:
   • Digital load cells often support automatic or remote calibration, reducing setup time and maintenance efforts.
4. Advanced Diagnostics:
   • Many digital load cells include self-monitoring capabilities to detect issues like overloading, environmental damage, or wiring faults.
5. Data Transmission:
   • Use digital communication protocols such as RS485, MODBUS, or CAN bus for reliable data transfer.

Advantages of Digital Load Cells

1. Improved Signal Quality:
   • The digital signal is less prone to noise and interference, even over long distances.
2. Ease of Integration:
   • Compatible with modern weighbridge indicators, automation systems, and IoT devices.
3. Enhanced Durability:
   • Designed to withstand challenging environments, with robust sealing (e.g., IP68 or IP69K ratings).
4. Simplified System Setup:
   • Fewer components like junction boxes are needed, and calibration can be done directly through software.
5. Multiple Load Cell Management:
   • Easily integrates multiple load cells in a networked setup for large or complex weighbridges.

Limitations

1. Cost:
   • Digital load cells are more expensive than analog counterparts.
2. Dependency on Electronics:
   • Failure of the internal electronics may require replacement of the entire load cell.
3. System Compatibility:
   • May not work with older analog weighbridge indicators unless specific adapters or converters are used.
